Mounting instruction Dimensions

Optional mechanical over ride with Euro-profile cylinder (from both sides)
Cylinder not included

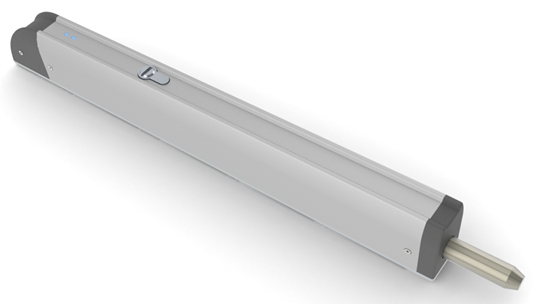

Steel made bolt, diameter (mm) 18 x extension (mm) 55

Body in stainless steel, cover in aluminium and plastic terminals

Bolt “total reaction” burglar device in closed position

Micro-processor electronic housed-in
Power supply: 12-24 Vdc – 12-18Vac
Power consumption : 600 mA of peak, 3A with bolt under load pressure, 30 mA for maintenance

Time adjustment :

T1 - Time adjustment between 0-5 seconds from re-locking after door opening

T2 - Time adjustment between 0-180 seconds if the door is not moved

T3 - Time adjustment between 0-180 seconds from to get an alarm if the door remains open

Modes of operation

1. Automatic mode : opening command by dry contact or electrical impulse and closing controlled by an housed-in or remote magnetic sensor. This mode runs time adjustment

2. Bistable mode : one command to open, one command to close

3. Automatic mode with Fail Safe function : As Mode 1 and the bolt opens automatically in case of power failure. A back up battery is necessary

 4. Bistable mode with Fail Safe function : As Mode 2 and the bolt opens automatically in case of power failure. A back up battery is necessary

Red/green LED to monitor bolt position

Green LED to indicate Mode of operation selected. This LED is not visibile from outside
N.O. contact to open the lock
Contact C./N.O./N.C. to monitor the bolt position
Input Contact N.O. to add a remote magnetic sensor

Made in Italy - 2 years warranty
