Brackets and covers for electromagnetic locks - Mini series







Code 03700 - L fixing bracket for out-swinging doors

L bracket for mounting magnets 13600, 13700, 13700TD

Satin anodised aluminium, on demand dark anosided (03700N)

Dimensions 250 x 30 x 48mm



---

Code 03701 - Z bracket for in-swinging doors



Z bracket for mounting on MINI magnet seires 13600, 13700, 13700TD

Dimensions: 250 x 30 x 48mm (L bracket)
Dimensions: 220 x 113 x 55-77 (Z bracket for armature plate)

Kit composed by 3 pieces

Top

---

Code 03705 - short cover carter for covering just the bracket 03700



Short casing cover

In black painted steel, for mounting on magnet 13600, 13700, 13700TD for covering both the fixing L bracket

Top

---

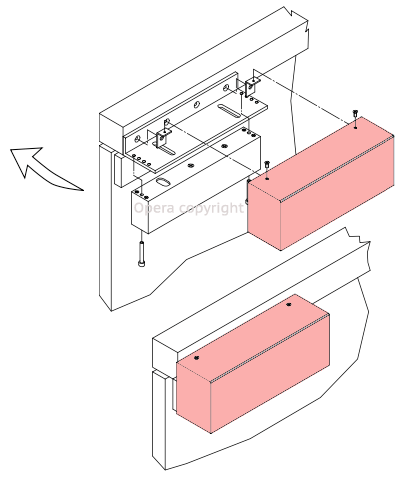

Code 03706 - long cover carter for covering L bracket and Magnet

Long casing cover

In black painted steel, for mounting on magnet 13600, 13700, 13700TD for covering both the fixing L bracket and magnet

Top

---

Code 03003 - Armature plate base for fire proof doors

Armature plate base for fixing on the door without using through bolt screws

Mounting drawing

Top

---

Code 03004 - Armature plate base for fire proof doors



For fire resistant doors

For application of the armature plate of an electromagnet on a fire proof doors or metal doors.

Mounting drawing

Top

---

Code 03707 - L bracket with casing cover



Satin anodised aluminium L bracket with cover for magnets MINI series 13600, 13700, 13700TD

Dimensions: 247 x 48 x 30mm

Top

---

Code 03708 - Z bracket with cover for in-swinging doors

Satin anodised aluminium bracket with casing cover for magnet MINI series

Kit composed by 3 pieces

Top

---

Code 03007 - U bracket for fixing on glazed doors

See drawing - for door thickness 10-12mm

Supplied with 4 spacers thickness 1mm
