Intercom and indicator lamp system for doors

















Opera

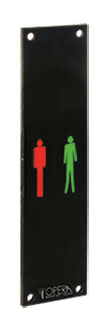

OP 0450156 - Red / Green indicator light

Red / Green indicator lamp
interchangeable with the Yale-corni traffic lights

Ref OP04501 56

Front plate in anodized aluminium with black polycarbonate film
External dimensions (mm) 160 x 40 x 2,5
Internal circuit dimensions (mm): 100 x 36 x 22

Operating Voltage 12/24 Vac/dc – 25 mA
Selection jumper for fixed or flashing light
Command for LED selection with N.O. contacts



















Opera

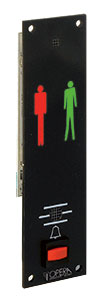

OP 0450158 - Red / Green indicator light with intercom



Intercom handset



Red / Green indicator lamp with intercom facilities
interchangeable with the Yale-corni traffic lights

Ref OP04501 58

Front plate in anodized aluminium with black polycarbonate film
External dimensions (mm) 160 x 40 x 2,5
Internal circuit dimensions (mm): 141 x 37 x 26

Operating Voltage 12/24 Vac/dc – 25 mA
Selection jumper for fixed or flashing light
Command for LED selection with N.O. contacts

With loudspeaker and microphone
Opening or call push button with N.O. contact

To be used with porter 05515




















Opera



05515 - porter intercome


Intercom handset

Porter intercome

Ref 05515

Body in black ABS, external dimensions mm 120 x 56 x 30
Internal circuit dimensions mm 80 x 33 x16
Operating voltage : 12Vdc - 10mA in stand-by / 100 mA in operation
Call push button with blue signalling LED for handset connection
Amplified system with loudspeaker and microphone compatible with
standard 5 wire intercom systems

Separate adjustment of loudspeaker and microphone volumes via
trimmers

To be used with indicator lamp ref. OP04501 58
